Brief Introduction

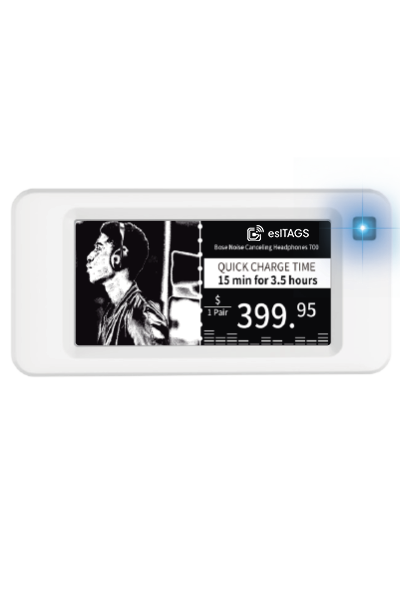

eslTAGS SuperGlaxay Series, independently designed by eslTAGS, are utilising the latest Bluetooth® Low Energy 5.0 Technology. STag21 features the latest e-ink display technology, providing fully graphic display, agile & flexible information updates. Also, it delivers a near 180° viewing angle for excellent readability.
Specifications
Material: ABS+PC
Color: White
Dimension: 73 * 36 * 14 mm
Display Technology:EPD
Screen size:2.13-inch
Display Area:49*24mm
Resolution:250 * 122px
Pixel Density:130 dpi
Weight:31g
Battery Lifetime:5 Years (5 updates/day)
Fixing Ways: Bracket/Ice Plug/Shelf Rail etc.
Display Color: STag21R-Black/White/Red, STag21Y-Black/White/Yellow, STag21B-Black/White
Technical Parameter
Communication Protocol:Bluetooth Low Energy 5.0
Battery:CR2450*1
Transmitting Distance:30-60 Meters
Working Humidity:50+20%RH
Operating Temperature:0°C-50°C
Storage Temperature:-20°C-60°C
Protection Level:IPX5
Compliance
Certification:BQB/FCC/CE/ROHS
Highlight
Updating in seconds
LED location indicator
REST API
Managed by Cloud/APP
NFC Optional
5-year battery lifetime (1 updates/day)
NFC Optional
FCC Requirements:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residentialinstallation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interferencewill not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
‒ Reorient or relocate the receiving antenna.
‒ Increase the separation between the equipment and receiver.
‒ Connect the equipment into an outlet on a circuit different from that towhich the receiver is
connected.
‒ Consult the dealer or an experienced radio/TV technician for help.
