Brief Introduction

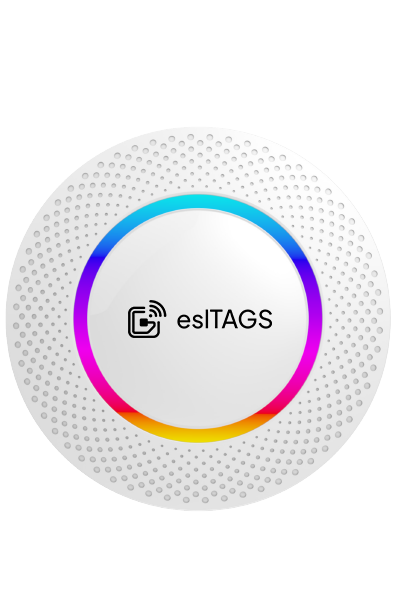

The gateway G1-E is independently developed by eslTAGS, working as a center controller of Bluetooth devices,monitoring their wireless signal and transmitting to IoT Cloud Platform via Wi-Fi or Ethernet.G1-E features a fasion appearance with 7-color light loop, which appears different colors according to different status.With high-sensi-tivity Bluetooth signal reception, it supports a wide monitoring range.Moreover,its professional router meets the needs of big data process-ing.G1-E is the most advanced gateway model of G1 series.Assembledwith multiple BLE modules, it is capable of sending multichannels of data at the same time and binding with tags more exible. It also boasts with high transmitting speed, anti-interference and strong stability.
Specifications
Material:ABS
Color:White
Weight:165g
Dimension:Ø150×36mm(Built-in antenna)
Range:300 meters in open area
Power By:5V 1A DC adapter or PoE
Interface:Network Interface/ USB Interface
Installation:Ceiling, Wall-hung. Horizontal Arrangement
Upgrade:USB or OTA
Technical Parameters
WiFi Protocol:IEEE 802.11 b/g/n
WiFi Power:18dBm
Bluetooth Protocol:BLE 5.
Bluetooth Receive Sensitivity:-108dBm
Wi-Fi:MTK Chip
BLE:Nordic52 Module
Working Temperature:-10°C~+50°C
Highlights
Multichannel BLE modules
High-speed transmission
A Strong stability
More flexible binding operation with tags
300m monitoring range
Anti interference
Better network adaptability
Seven-color light loop
Tips:
The gateway can only be used for communicating with electronic tags, not for network communication for other devices, otherwise, it may work abnormally, affecting the data transmitting to electronic tags.
FCC Requirements:
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residentialinstallation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interferencewill not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
‒ Reorient or relocate the receiving antenna.
‒ Increase the separation between the equipment and receiver.
‒ Connect the equipment into an outlet on a circuit different from that towhich the receiver is
connected.
‒ Consult the dealer or an experienced radio/TV technician for help.
